Description

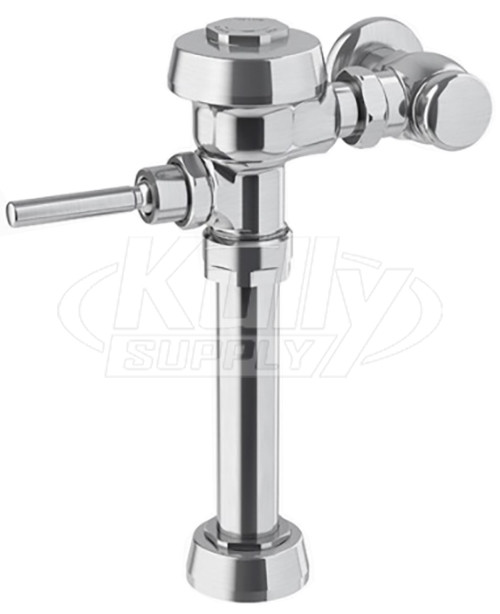

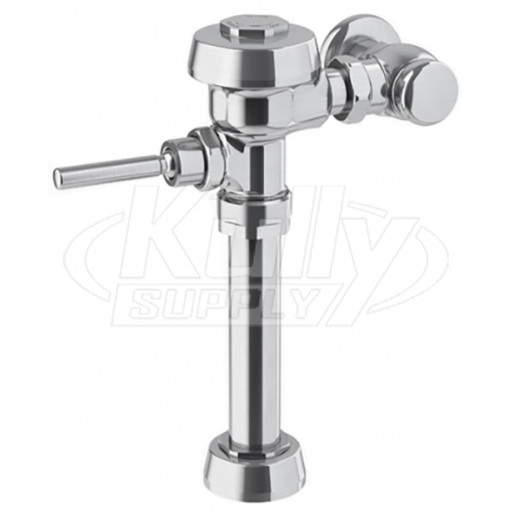

Exposed Water Closet Flushometer, for floor mounted or wall hung top spud bowls.
Specifications
Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for left or right hand supply with the following features:
- Brushed Satin Finish
- Flush Cycle: 1.6 gpf/6.0 Lpf
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Spud Coupling and Flange for 1½” Top Spud
- Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
- Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flush Accuracy Controlled by CID Technology
- Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
- 1” I.P.S. Screwdriver Bak-Chek® Stop with free spinning vandal resistant stop cap
Valve Body, Cover and Tailpiece shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
ADA Compliant Metal Oscillating Non-Hold-Open Handle
Variations
- Brushed Stainless (SF / PVD Finish)
