Description
GENERAL INFORMATION

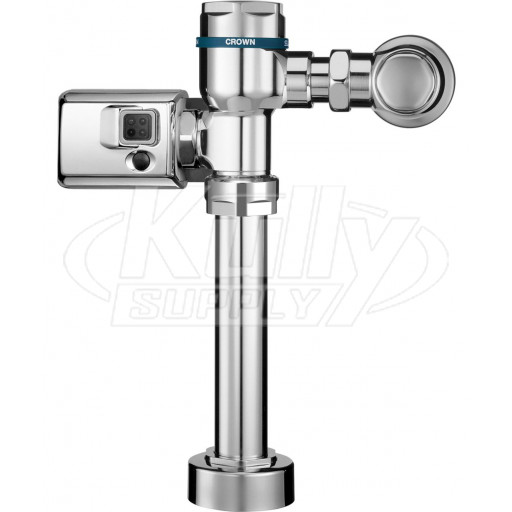

Quiet, Exposed, Piston Type, Chrome Plated Closet Flushometer with the following features:
- Exposed, Battery Powered, Side Mount Sensor Operated Water Closet Flushometer
- For floor mounted or wall hung top spud bowls.
- ADA Compliant OPTIMA Battery Powered Infrared Sensor for automatic “No Hands” operation
- Fixed Volume Piston with Filtered O-ring Bypass
- Chrome Plated Infrared Sensor Housing
- Angled Sensor Window
- Manual Override Flush Button
- Four (4) Size C Batteries included
- “Low Battery” Flashing LED with Optional Audio Tone
- “User in View” Flashing LED
- Optional 24-Hour Sentinel Flush
- Infrared Sensor Range Adjustment Screw and Reset Button
- 1” I.P.S. Screwdriver Bak-Chek Angle Stop
- Locking Vandal Resistant Stop Cap
- Adjustable Tailpiece
- High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
- Spud Coupling and Flange for 1-1/2” Top Spud
- Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Valve designed to accept Low and Ultra-Low Consumption Pistons only to ensure Water Conservation
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
Valve cannot be converted to exceed a low consumption flush.
HYGIENIC
User makes no physical contact with the Flushometer surface except to initiate the Override Button when required. Helps control the spread of infectious diseases. 24-Hour Sentinel Flush keeps fixture fresh during periods of nonuse.
ECONOMICAL
Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs. Installation and battery replacement does not require turning off water to the valve.
