Description

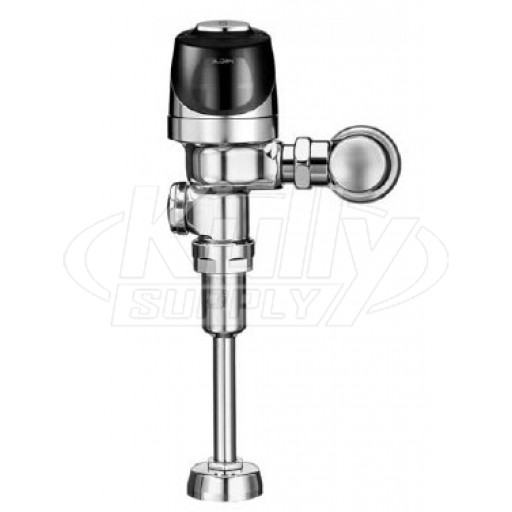

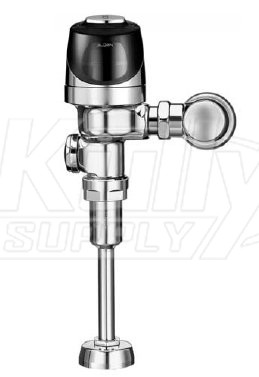

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Flex Tube Diaphragm Designed for Improved Life and Reduced Maintenance
- ADA-Compliant OPTIMA Plus Battery Powered Infrared Sensor for Automatic “No Hands” operation
- Infrared Sensor with Multiple-Focused, Lobular Sensing Fields for High and Low Target Detection
- Latching Solenoid Operator
- Engineered Metal Cover with Replaceable Lens Window
- Courtesy Flush Override Button
- Four (4) Size AA Batteries Factory Installed
- “Low Battery” Flashing LED
- Infrared Sensor Range Adjustment Screw
- Initial Set-up Range Indicator Light (first 10 Minutes)
- Chrome-Plated Metal Handle Cap
- 3/4” I.P.S. Screwdriver Bak-Chek Angle Stop
- Free Spinning, Vandal-Resistant Stop Cap
- Adjustable Tailpiece
- High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut
- Spud Coupling and Flange for 3/4” Top Spud
- Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flush Accuracy Controlled by CID Technology
- Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
