Description
GENERAL INFORMATION

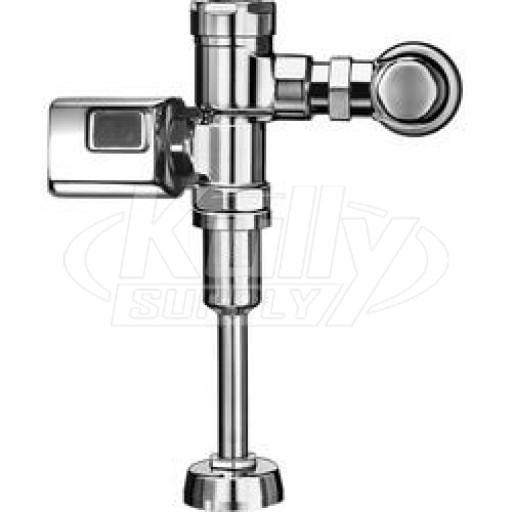

Quiet, Exposed, Piston Type, Chrome Plated Urinal Flushometer with the following features:
- Exposed, Battery Powered
- Side Mount Sensor Operated Urinal Flushometer for 3/4” top spud urinals
- ADA Compliant OPTIMA Battery Powered Infrared Sensor for automatic “No Hands” operation
- Sweat Solder Adapter and Cast Set Screw Wall Flange
- Fixed Volume Piston with Filtered O-ring Bypass
- Chrome Plated Infrared Sensor Housing
- Angled Sensor Window
- Manual Override Flush Button
- Four (4) Size C Batteries included
- “Low Battery” Flashing LED with Optional Audio Tone
- “User in View” Flashing LED
- Optional 24-Hour Sentinel Flush
- Infrared Sensor Range Adjustment Screw and Reset Button
- EBV-157 Handle Adapter Kit
- 3/4” I.P.S. Screwdriver Bak-Chek Angle Stop
- Locking Vandal Resistant Stop Cap
- Adjustable Tailpiece
- Vacuum Breaker Flush Connection
- Spud Coupling, Wall and Spud Flanges for 3/4” Top Spud
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- No External Volume Adjustment to Ensure Water Conservation
- Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance
HYGIENIC
User makes no physical contact with the Flushometer surface except to initiate the Override Button when required. Helps control the spread of infectious diseases. 24-Hour Sentinel Flush keeps fixture fresh during periods of nonuse.
ECONOMICAL
Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs. Installation and battery replacement does not require turning off water to the valve.
