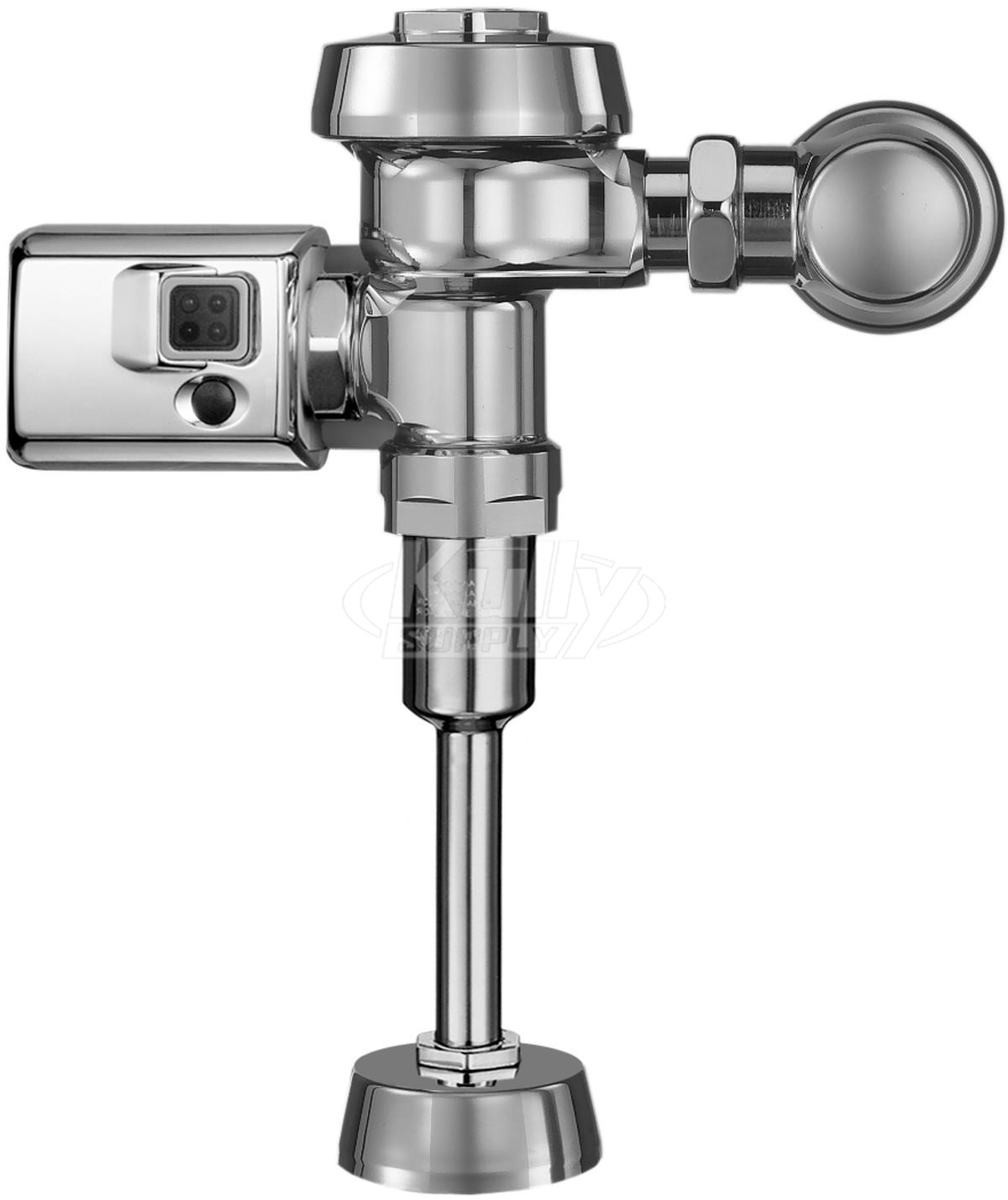

Sloan ROYAL 180 SMO Flushometers

Description

GENERAL INFORMATION

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

• Battery Powered
• Side Mount Sensor Operated Urinal Flushometer for 1¼” top spud urinals.
• PERMEX Synthetic Rubber Diaphragm with Dual Filter Bypass
• ADA Compliant OPTIMA
• Battery Powered Infrared Sensor for automatic “No Hands” operation
• Chrome Plated Infrared Sensor Housing
• Angled Sensor Window
• Manual Override Flush Button
• Four (4) Size C Batteries included
• “Low Battery” Flashing LED with Optional Audio Tone
• “User in View” Flashing LED
• Optional 24-Hour Sentinel Flush
• Infrared Sensor Range Adjustment Screw and Reset Button
• 1” I.P.S. Screwdriver Bak-Chek Angle Stop
• Free Spinning, Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1¼” Top Spud
• Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Flush Accuracy Controlled by CID Technology
• No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance

HYGIENIC

User makes no physical contact with the Flushometer surface except to initiate the Override Button when required. Helps control the spread of infectious diseases. 24-Hour Sentinel Flush keeps fixture fresh during periods of nonuse.

ECONOMICAL

Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs. Installation and battery replacement does not require turning off water to the valve.
