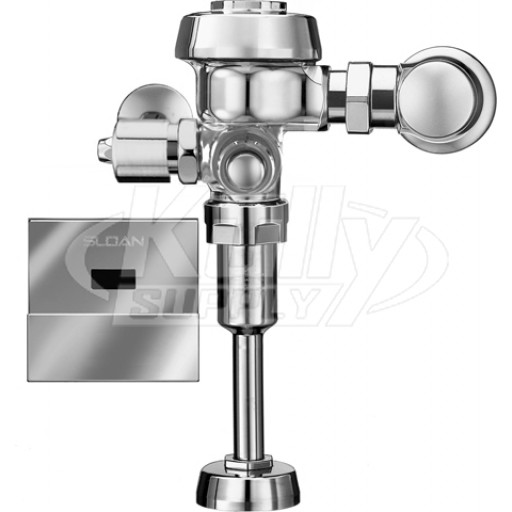

Sloan ROYAL 186-0.13 ES-S TMO Hardwired Flush Valve

Description

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass • OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light • “Walk By” Delay of Eight (8) Seconds Prevents Unintentional Flushes • User Friendly Three (3) Second Flush Delay • With True Mechanical Override • Non-Hold-Open Integral Solenoid Operator • Die Cast Sensor Cover Plate with no visible Fasteners (for 2-gang Electrical Box) • 1” I.P.S. Screwdriver Bak-Chek® Angle Stop • Free Spinning Vandal Resistant Stop Cap • Adjustable Tailpiece • High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 1¼” Top Spud • Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw • High Copper, Low Zinc Brass Castings for Dezincification Resistance • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation • Flush Accuracy Controlled by CID™Technology • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine Resistance
