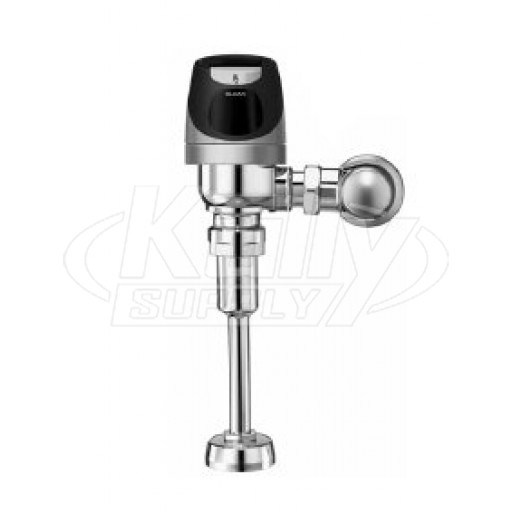

Sloan Solis 8186-0.25 Solar Flushometer

Description

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

• PERMEX™ Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action • Flex Tube Diaphragm designed for improved life and reduced maintenance. • Flush Accuracy Controlled by CID™Technology • Reduces water usage up to 80% over Standard Sensor Urinals. • Solar Powered – The sensor assembly is powered by a solar cell that will harvest power from artificial indoor light, either incandescent or fluorescent light, and use it as the energy source. The solar cell can provide approximately 100% power with 650 Illuminance (lux). • Four (4) Size AA Battery Back-up Power Source • “Low Battery” Flashing LED • ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection • Latching Solenoid Operator • Engineered Metal Cover with replaceable Lens Window • User friendly three (3) second Flush Delay • Courtesy Flush™ Override Button • Infrared Sensor Range Adjustment Screw • Initial Set-up Range Indicator Light (first 10 minutes) • 3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop • Free Spinning, Vandal Resistant Stop Cap • Adjustable Tailpiece • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut • Spud Coupling and Flange for 3/4” Top Spud • Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw • High Copper, Low Zinc Brass Castings for Dezincification Resistance • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine resistance
